漂亮創意外觀專利設計。
國标電機,确保了流量和揚程不打折。
無堵塞葉輪設計不易堵塞。
采用雙層防水的耐磨機械密封。

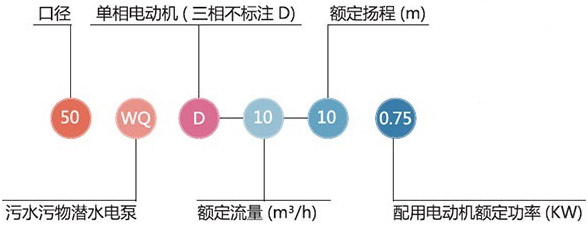

規格型号 | 額定流量(m³/h) | 額定揚程 | 功率 | 電壓 | 同步轉速 | 電流 | 管徑 |
(m³/h) | (m) | (kW) | (V) | (r/min) | (A) | (mm) | |
50WQD10-10-0.75(A) | 10 | 10 | 0.75 | 220 | 3000 | 5.24 | 50 |
50WQ10-10-0.75(A) | 10 | 10 | 0.75 | 380 | 3000 | 1.8 | 50 |
50WQD10-15-1.1(A) | 10 | 15 | 1.1 | 220 | 3000 | 7.02 | 50 |
50WQ10-15-1.1(A) | 10 | 15 | 1.1 | 380 | 3000 | 2.5 | 50 |
50WQD15-15-1.5(A) | 15 | 15 | 1.5 | 220 | 3000 | 9.44 | 50 |
50WQ15-15-1.5(A) | 15 | 15 | 1.5 | 380 | 3000 | 3.2 | 50 |
50WQ15-20-2.2(A) | 15 | 20 | 2.2 | 380 | 3000 | 4.8 | 50 |
65WQ25-15-2.2(A) | 25 | 15 | 2.2 | 380 | 3000 | 4.8 | 65 |
80WQ40-9-2.2(A) | 40 | 9 | 2.2 | 380 | 3000 | 4.8 | 80 |
100WQ50-7-2.2(A) | 50 | 7 | 2.2 | 380 | 3000 | 4.8 | 100 |
50WQ15-25-3(A) | 15 | 25 | 3 | 380 | 3000 | 6.4 | 50 |
65WQ25-20-3(A) | 25 | 20 | 3 | 380 | 3000 | 6.4 | 65 |
80WQ40-15-3(A) | 40 | 15 | 3 | 380 | 3000 | 6.4 | 80 |
100WQ50-10-3(A) | 50 | 10 | 3 | 380 | 3000 | 6.4 | 100 |
50WQ15-32-4(A) | 15 | 32 | 4 | 380 | 3000 | 8.2 | 50 |
65WQ25-25-4(A) | 25 | 25 | 4 | 380 | 3000 | 8.2 | 65 |
80WQ40-18-4(A) | 40 | 18 | 4 | 380 | 3000 | 8.2 | 80 |
100WQ50-15-4(A) | 50 | 15 | 4 | 380 | 3000 | 8.2 | 100 |
50WQ20-32-5.5(A) | 20 | 32 | 5.5 | 380 | 3000 | 11.5 | 50 |
65WQ30-25-5.5(A) | 30 | 25 | 5.5 | 380 | 3000 | 11.5 | 65 |
80WQ50-18-5.5(A) | 50 | 18 | 5.5 | 380 | 3000 | 11.5 | 80 |
100WQ80-10-5.5(A) | 80 | 10 | 5.5 | 380 | 3000 | 11.5 | 100 |
150WQ100-7-5.5(A) | 100 | 7 | 5.5 | 380 | 3000 | 11.5 | 150 |
50WQ20-40-7.5(A) | 20 | 40 | 7.5 | 380 | 3000 | 16.6 | 50 |
65WQ30-32-7.5(A) | 30 | 32 | 7.5 | 380 | 3000 | 16.6 | 65 |
80WQ50-22-7.5(A) | 50 | 22 | 7.5 | 380 | 3000 | 16.6 | 80 |
100WQ80-15-7.5(A) | 80 | 15 | 7.5 | 380 | 3000 | 16.6 | 100 |
150WQ100-10-7.5(A) | 100 | 10 | 7.5 | 380 | 3000 | 16.6 | 150 |
80WQ50-32-11(A) | 50 | 32 | 11 | 380 | 3000 | 22.1 | 80 |
100WQ100-20-11(A) | 100 | 20 | 11 | 380 | 3000 | 22.1 | 100 |
150WQ150-12-11(A) | 150 | 12 | 11 | 380 | 3000 | 22.1 | 150 |
200WQ200-10-11(A) | 200 | 10 | 11 | 380 | 3000 | 22.1 | 200 |
80WQ70-30-15(A) | 70 | 30 | 15 | 380 | 3000 | 30.3 | 80 |
100WQ100-25-15(A) | 100 | 25 | 15 | 380 | 3000 | 30.3 | 100 |
150WQ150-15-15(A) | 150 | 15 | 15 | 380 | 3000 | 30.3 | 150 |
200WQ200-12-15(A) | 200 | 12 | 15 | 380 | 3000 | 30.3 | 200 |
100WQ100-20-18.5(A) | 100 | 20 | 18.5 | 380 | 1450 | 38.7 | 100 |
150WQ150-20-18.5(A) | 150 | 20 | 18.5 | 380 | 1450 | 38.7 | 150 |
200WQ200-15-18.5(A) | 200 | 15 | 18.5 | 380 | 1450 | 38.7 | 200 |
100WQ100-35-22(A) | 100 | 35 | 22 | 380 | 1450 | 44.9 | 100 |
150WQ150-25-22(A) | 150 | 25 | 22 | 380 | 1450 | 44.9 | 150 |
200WQ200-22-22(A) | 200 | 22 | 22 | 380 | 1450 | 44.9 | 200 |
外型尺寸 | |||||
規格型号 | A(mm) | B(mm) | H(mm) | H1(mm) | D |
50WQD10-10-0.75(A) | 260 | 240 | 540 | 114 | φ140 |
50WQ10-10-0.75(A) | 260 | 240 | 540 | 114 | φ140 |
50WQD10-15-1.1(A) | 260 | 240 | 570 | 114 | φ140 |
50WQ10-15-1.1(A) | 260 | 240 | 570 | 114 | φ140 |
50WQD15-15-1.5(A) | 260 | 240 | 570 | 114 | φ140 |
50WQ15-15-1.5(A) | 260 | 240 | 570 | 114 | φ140 |
50WQ15-20-2.2(A) | 287 | 260 | 595 | 116 | φ140 |
65WQ25-15-2.2(A) | 291 | 260 | 600 | 119 | φ160 |
80WQ40-9-2.2(A) | 307 | 260 | 610 | 124 | φ190 |
100WQ50-7-2.2(A) | 322 | 260 | 615 | 127 | φ210 |
50WQ15-25-3(A) | 307 | 260 | 620 | 116 | φ140 |
65WQ25-20-3(A) | 315 | 265 | 625 | 119 | φ160 |
80WQ40-15-3(A) | 307 | 260 | 635 | 127 | φ190 |
100WQ50-10-3(A) | 297 | 242 | 590 | 125 | φ210 |
50WQ15-32-4(A) | 307 | 260 | 645 | 116 | φ140 |
65WQ25-25-4(A) | 315 | 265 | 650 | 119 | φ160 |
80WQ40-18-4(A) | 307 | 260 | 660 | 124 | φ190 |
100WQ50-15-4(A) | 307 | 260 | 660 | 127 | φ210 |
50WQ20-32-5.5(A) | 332 | 280 | 700 | 127 | φ140 |
65WQ30-25-5.5(A) | 342 | 280 | 710 | 132 | φ160 |
80WQ50-18-5.5(A) | 347 | 280 | 715 | 135 | φ190 |
100WQ80-10-5.5(A) | 357 | 290 | 730 | 142 | φ210 |
150WQ100-7-5.5(A) | 397 | 320 | 745 | 147 | φ265 |
50WQ20-40-7.5(A) | 332 | 280 | 730 | 127 | φ140 |
65WQ30-32-7.5(A) | 342 | 280 | 740 | 132 | φ160 |
80WQ50-22-7.5(A) | 347 | 280 | 745 | 135 | φ190 |
100WQ80-15-7.5(A) | 357 | 290 | 760 | 142 | φ210 |
150WQ100-10-7.5(A) | 397 | 320 | 775 | 147 | φ265 |
80WQ50-32-11(A) | 385 | 355 | 890 | 160 | φ190 |
100WQ100-20-11(A) | 415 | 355 | 890 | 155 | φ210 |
150WQ150-12-11(A) | 445 | 355 | 890 | 170 | φ265 |
200WQ200-10-11(A) | 465 | 355 | 890 | 175 | φ320 |
80WQ70-30-15(A) | 385 | 355 | 920 | 160 | φ190 |
100WQ100-25-15(A) | 415 | 355 | 920 | 155 | φ210 |
150WQ150-15-15(A) | 445 | 355 | 920 | 170 | φ265 |
200WQ200-12-15(A) | 465 | 355 | 920 | 175 | φ320 |
